產品詳情

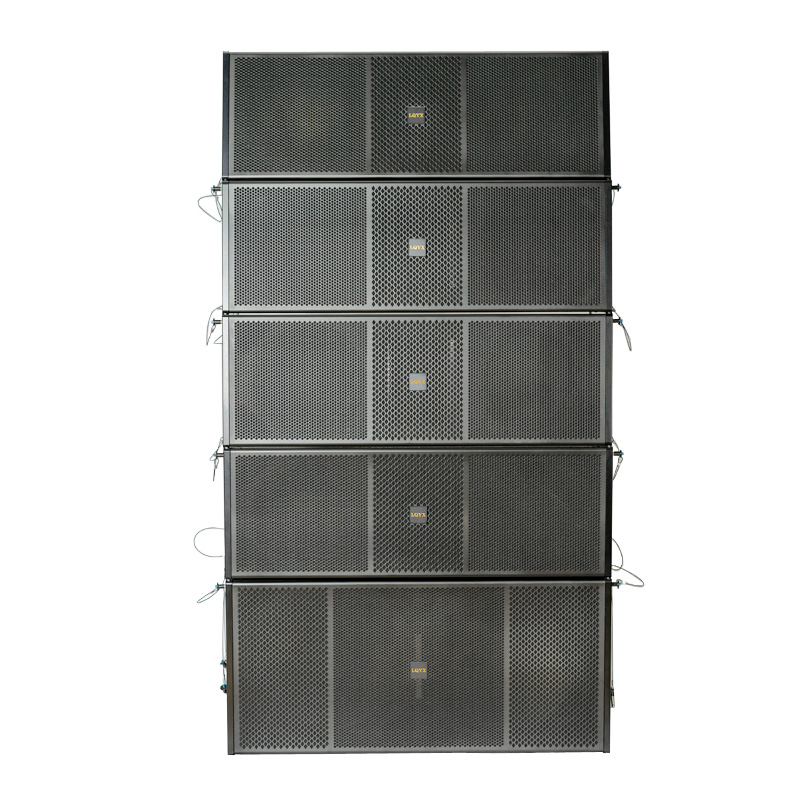

LQ2212 LQ2218S雙12寸線陣列音箱

品牌 : LQYX
型號 : LQ2212 LQ2218S
產品詳情



系列類型Series type
雙12寸線陣列音箱
Double 12 inch line array speaker
雙18寸吊掛式線陣列超低音箱
Double 18 inch hanging line array subwoofer
型號model
LQ2212
LQ2218S
單元配置System composition
LF 2×12”
HF 2×1.75 in
LF 2×18”


頻響Frequency response
55Hz-20KHz
30Hz-350Hz
靈敏度Sensitivity
108dB
105dB
最大聲壓The maximum sound pressure
141dB
145dB
功率(連續)RMS power
1000W
1600W
功率(峰值)Peak power
2000W
3200W
標稱阻抗impedance
覆蓋角度Dispersion
120°H×10°V
360°
吊掛Hanging.
LQ專用預裝件Special pre-assembly
LQ專用預裝件Special pre-assembly
底座Bottom sit
...
...
連接器Connector
2×speakon NL4MP
2×speakon NL4MP
深×寬×高Deep×width× height
485×1062×360mm
750×1062×490mm
重量weight
41.5Kg
73Kg


技術參數Technical Parameters:




產品特性:

LQ2000系列是自主研發全新推出多功能用途的線陣列專業音箱,系統采用先進的分頻技術,使聲音傳輸距離更遠頻響更寬,在多只音箱排列組成線陣時,音箱相互之間的聲波干涉減到最小。專業吊掛系統,安全、快速、可靠。箱體表面噴涂耐磨油性光滑黑色涂料并具有抗水防腐蝕作用,堅硬的外表涂層能承受各種摩擦和碰撞,經久耐用,面網貼有高透聲率聲學海綿,防水塵垢及雨水的侵蝕,采用特殊設計的線陣玻璃鋼高音號角,提高了輸出聲壓,配備了精準的吊掛件度數孔能方便簡單的音箱角度調整,使現場聲音更均勻,覆蓋范圍更寬廣,整體音色細膩層次感豐富平衡自然。

Product Features:

LQ2 line array speakers, the system uses advanced frequency division technology, so that the sound transmission distance is farther. When multiple speakers are arranged to form a linear array, the acoustic interference between the speakers is minimized. Professional hanging system, safe, fast and reliable.

The outer layer of the box is made of high-quality multi-layer birch plywood. The surface of the box is coated with wear-resistant black paint, and it has a water-resistant and corrosion-resistant black coating outer layer. It can minimize the damage caused by friction and is durable when used in mobile performances. The surface net is affixed with a high permeability acoustic sponge, waterproof dirt and rainwater erosion.

The use of a specially designed wire array fiberglass treble horn improves the output pressure and is equipped with an accurate hanging part degree to adjust the angle of the simple speaker, making the sound on the scene more uniform and the coverage wider.

The overall tone is delicate and natural.


適用:各種室內室外大中小型舞臺演出等工程專用產品

Applicable to: various outdoor large-scale performances, gymnasium sound expansion, theater sound expansion, clubhouse, multi-purpose hall, auditorium, auditorium and other special products
